apoc.create.vRelationship

This is both a function and a procedure.

Function Details

Details
Syntax	`apoc.create.vRelationship(from, relType, props, to)`
Description	Returns a virtual `RELATIONSHIP`.
Arguments	Name	Type	Description
	`from`	`NODE`	The start node to assign to the virtual relationship.
	`relType`	`STRING`	The type to assign to the virtual relationship.
	`props`	`MAP`	The map of properties to assign to the virtual relationship.
	`to`	`NODE`	The end node to assign to the virtual relationship.
Returns	`RELATIONSHIP`

Procedure Details

Details
Syntax	`apoc.create.vRelationship(from, relType, props, to) :: (rel)`
Description	Returns a virtual `RELATIONSHIP`.
Input arguments	Name	Type	Description
	`from`	`NODE`	The node to connect the outgoing virtual relationship from.
	`relType`	`STRING`	The type to assign to the new virtual relationship.
	`props`	`MAP`	The properties to assign to the new virtual relationship.
	`to`	`NODE`	The node to which the incoming virtual relationship will be connected.
Return arguments	Name	Type	Description
Return arguments	`rel`	`RELATIONSHIP`	The created virtual relationship.

Usage Examples

The examples in this section are based on the following graph:

CREATE (s1:Student {name: 'Priya'})
CREATE (s2:Student {name: 'Joachim'})
CREATE (s3:Student {name: 'Dominic'})
CREATE (s4:Student {name: 'Amir'})
CREATE (s5:Student {name: 'Natasha'})
CREATE (s6:Student {name: 'Elena'})

CREATE (t1:TestScore {score: 87})
CREATE (t2:TestScore {score: 90})
CREATE (t3:TestScore {score: 78})
CREATE (t4:TestScore {score: 84})
CREATE (t5:TestScore {score: 76})
CREATE (t6:TestScore {score: 92})

CREATE (a:Level {level: 'beginner'})
CREATE (b:Level {level: 'intermediate'})
CREATE (c:Level {level: 'advanced'})

MERGE (s1)-[:HAS]->(t1)-[:ASSIGNED_TO]->(b)
MERGE (s2)-[:HAS]->(t2)-[:ASSIGNED_TO]->(c)
MERGE (s3)-[:HAS]->(t3)-[:ASSIGNED_TO]->(a)
MERGE (s4)-[:HAS]->(t4)-[:ASSIGNED_TO]->(b)
MERGE (s5)-[:HAS]->(t5)-[:ASSIGNED_TO]->(a)
MERGE (s6)-[:HAS]->(t6)-[:ASSIGNED_TO]->(c);

The apoc.create.vRelationship offers both a procedure and function version, so we can create the virtual relationships independently or return them based on results of a query.

For instance, we might want to create virtual relationships between students to see which students have the same understanding level of class material:

apoc.create.vRelationship Procedure

MATCH (s1:Student)-[:HAS]->(:TestScore)-[:ASSIGNED_TO]->(l:Level)<-[:ASSIGNED_TO]-(:TestScore)<-[:HAS]-(s2:Student)
CALL apoc.create.vRelationship(s1,'SIMILAR_LEVEL',{level: l.level},s2) YIELD rel
RETURN s1, rel, s2;

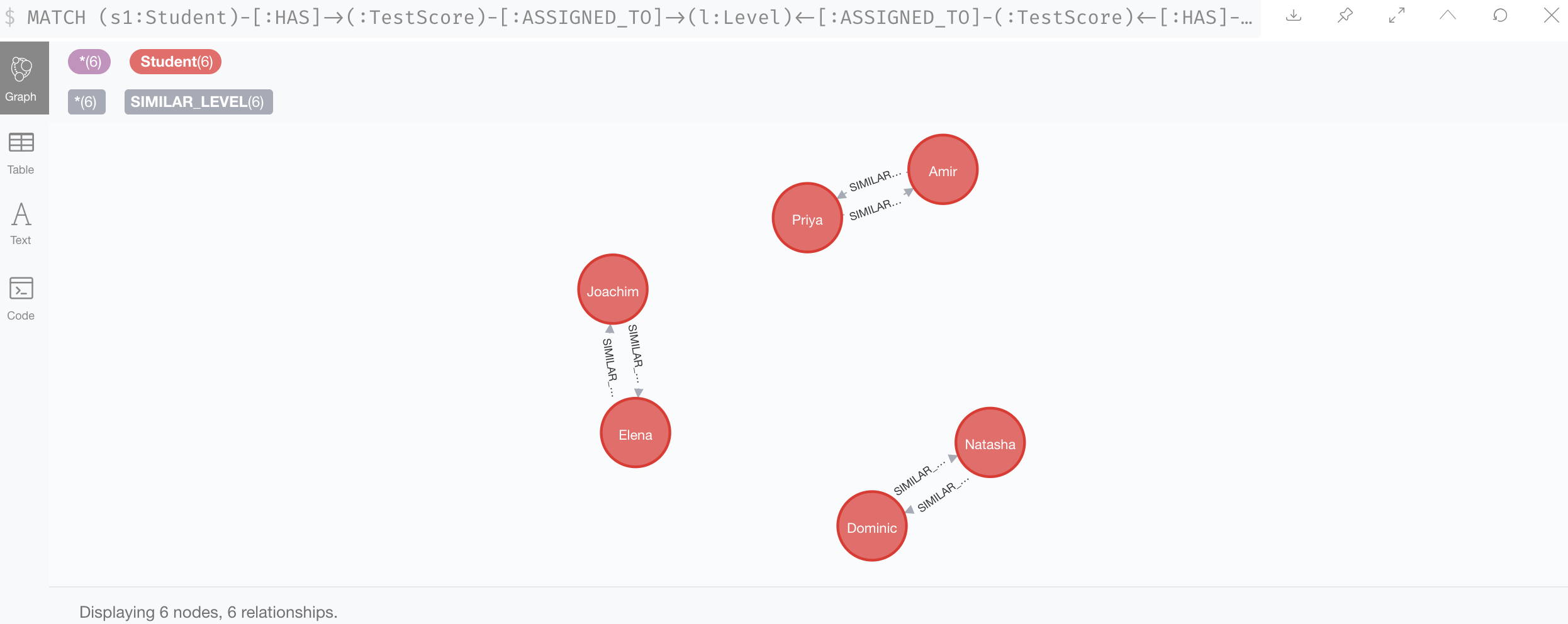

Figure 1. Results

We could also create a virtual relationship straight to their level and use the function version of the apoc.create.vRelationship.

apoc.create.vRelationship Function

MATCH (s1:Student)-[:HAS]->(:TestScore)-[:ASSIGNED_TO]->(l:Level)
RETURN s1, apoc.create.vRelationship(s1,'HAS_UNDERSTANDING',{},l) as rel, l

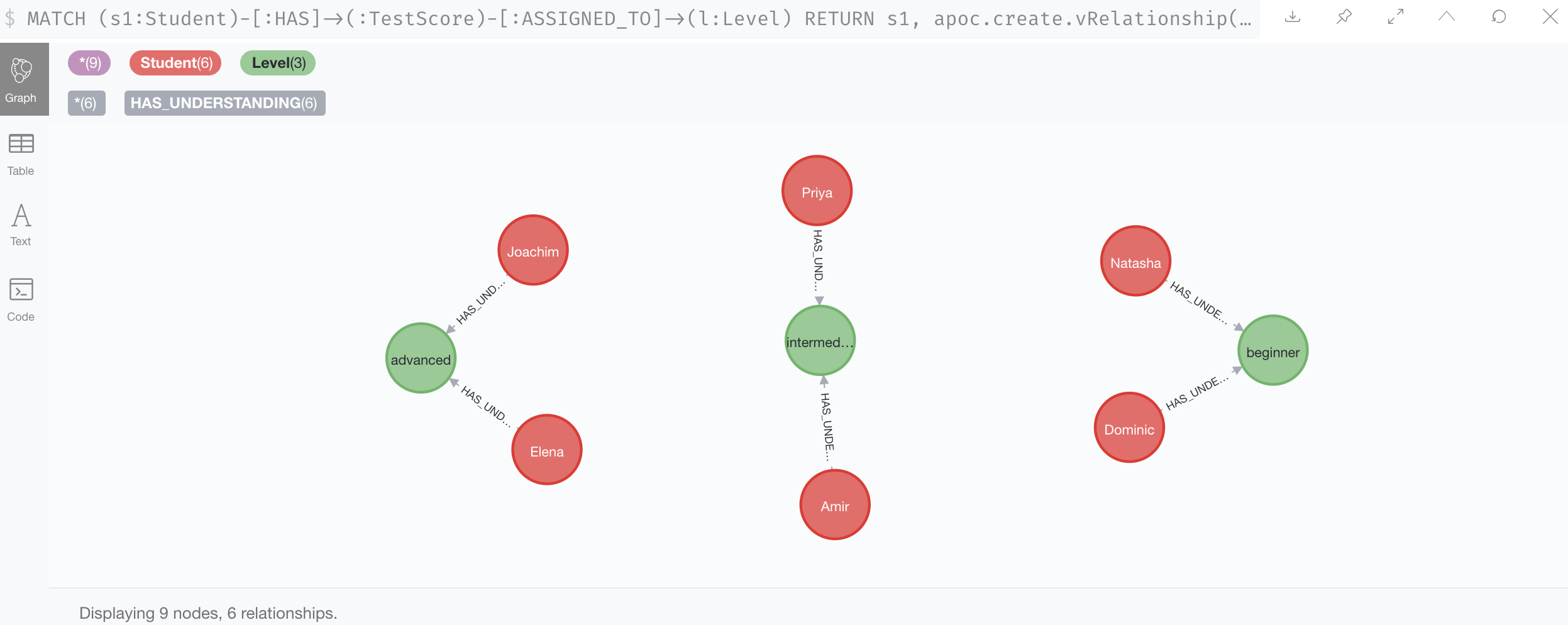

Figure 2. Results

More documentation of apoc.create.vRelationship
