apoc.graph.fromDocument

This procedure returns virtual nodes and relationships that can only be accessed by other APOC procedures. For more information, see Virtual Nodes & Relationships (Graph Projections).

Details
Syntax	`apoc.graph.fromDocument(json [, config ]) :: (graph)`
Description	Generates a virtual sub-graph by extracting all of the `NODE` and `RELATIONSHIP` values from the data returned by the given JSON file.
Input arguments	Name	Type	Description
	`json`	`ANY`	A JSON object to generate a graph from.
	`config`	`MAP`	`{ write = false :: BOOLEAN, labelField = 'type' :: STRING. idField = 'id' :: STRING, generateID = true :: BOOLEAN, defaultLabel = '' :: STRING, skipValidation = false :: BOOLEAN, mappings = {} :: MAP }`. The default is: `{}`.
Return arguments	Name	Type	Description
Return arguments	`graph`	`MAP`	The resulting graph.

Config parameters

The procedure supports the following config parameters:

Config parameters
Name	Type	Default	Description
`write`	`BOOLEAN`	false	Persist the graph otherwise return a Virtual Graph.
`labelField`	`STRING`	type	The field name that became the label of the node.
`idField`	`STRING`	id	The document field name that will become the id field of the created nodes (used for node resolution when you create relationships between nodes).
`generateId`	`BOOLEAN`	true	In case of missing id-field value it generates a UUID for it.
`defaultLabel`	`STRING`	""	In case of missing label-field value is uses the provided default label.
`skipValidation`	`BOOLEAN`	false	In case you want skip the validation process into the `apoc.graph.fromDocument`.
`mappings`	`MAP`<STRING, STRING>	{}	Click on link below for more detail.

Usage Examples

CALL apoc.graph.fromDocument("{'id': 1,'type': 'artist','name':'Genesis','members': ['Tony Banks','Mike Rutherford','Phil Collins'],'years': [1967, 1998, 1999, 2000, 2006],'albums': [{'type': 'album','id': 1,'producer': 'Jonathan King','title': 'From Genesis to Revelation'}]}", {write: false})
YIELD graph AS g
RETURN g.nodes AS nodes, g.relationships AS rels;

Results
nodes	rels
[(:Artist {name: "Genesis", id: 1, type: "artist", years: [1967, 1998, 1999, 2000, 2006], members: ["Tony Banks", "Mike Rutherford", "Phil Collins"]}), (:Album {producer: "Jonathan King", id: 1, type: "album", title: "From Genesis to Revelation"})]	[[:ALBUMS]]

Virtual graph from JSON with labelField

CALL apoc.graph.fromDocument("{'id': 1,'type': 'artist','name':'Genesis','members': ['Tony Banks','Mike Rutherford','Phil Collins'],'years': [1967, 1998, 1999, 2000, 2006],'albums': [{'type': 'album','id': 1,'producer': 'Jonathan King','title': 'From Genesis to Revelation'}]}", {write: false})
YIELD graph
RETURN *

As a result we have a virtual graph with two nodes and one relationship:

Virtual graph from JSON with labelField

CALL apoc.graph.fromDocument('{"id":10,"myCustomType":"labelArtist","name":"Genesis","albums":[{"myCustomType":"labelAlbum","producer":"Jonathan King","id":20,"title":"From Genesis to Revelation"}]}', {labelField: "myCustomType"})
YIELD graph
RETURN *

As a result we have a virtual graph with two nodes and one relationship:

Virtual graph from JSON with labelField and idField

CALL apoc.graph.fromDocument('{"myCustomType":"labelArtist","name":"Genesis","myCustomId":1,"albums":[{"myCustomType":"labelAlbum","producer":"Jonathan King","myCustomId":1,"title":"From Genesis to Revelation"}]}',
{labelField: "myCustomType", idField: "myCustomId"})
YIELD graph
RETURN *

As a result we have a virtual graph with two nodes and one relationship:

apoc.graph.fromDocument with label type and id field

Virtual graph from JSON with mappings

CALL apoc.graph.fromDocument('{"id":1,"type":"Person","name":"Andrea","sizes":{"weight":{"value":70,"um":"Kg"},"height":{"value":174,"um":"cm"},"array":["foo","bar"]},"books":[{"title":"Flow My Tears, the Policeman Said","released":1974},{"title":"The man in the High Castle","released":1962}]}',
{mappings:{`$`:"Person:Reader{*,@sizes}",`$.books`:"Book{!title, released}"}})
yield graph
RETURN *

As a result we have a virtual graph with three nodes and two relationship:

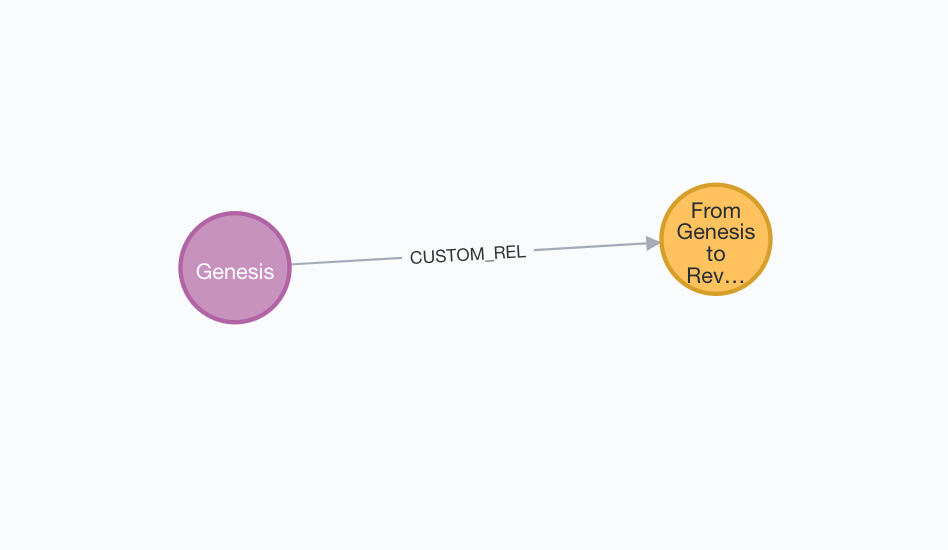

Virtual graph from JSON with relMapping

We can pass a relMapping to customize relationship names, passing a map with the relationships you want to change as keys. For example:

CALL apoc.graph.fromDocument("{'id': 1,'type': 'artist','name':'Genesis','members': ['Tony Banks','Mike Rutherford','Phil Collins'],'years': [1967, 1998, 1999, 2000, 2006],'albums': [{'type': 'album','id': 1,'producer': 'Jonathan King','title': 'From Genesis to Revelation'}]}",
{relMapping: {albums: "CUSTOM_REL"}});
