apoc.refactor.cloneSubgraphFromPaths

Details

Syntax

apoc.refactor.cloneSubgraphFromPaths(paths [, config ]) :: (input, output, error)

Description

Clones a sub-graph defined by the given LIST<PATH> values. It is possible to skip any NODE properties using the skipProperties LIST<STRING> via the config MAP.

Input arguments

Name

Type

Description

paths

LIST<PATH>

The paths to be cloned.

config

MAP

{ standinNodes :: LIST<LIST<NODE>>, skipProperties :: LIST<STRING> }. The default is: {}.

Return arguments

Name

Type

Description

input

INTEGER

The internal id of the original entity.

output

NODE

The copied entity.

error

STRING

Any error that occurred during the copy process.

Usage Examples

The examples in this section are based on the following sample graph:

CREATE  (rootA:Root{name:'A'}),
        (rootB:Root{name:'B'}),
        (n1:Node{name:'node1', id:1}),
        (n2:Node{name:'node2', id:2}),
        (n3:Node{name:'node3', id:3}),
        (n4:Node{name:'node4', id:4}),
        (n5:Node{name:'node5', id:5}),
        (n6:Node{name:'node6', id:6}),
        (n7:Node{name:'node7', id:7}),
        (n8:Node{name:'node8', id:8}),
        (n9:Node{name:'node9', id:9}),
        (n10:Node{name:'node10', id:10}),
        (n11:Node{name:'node11', id:11}),
        (n12:Node{name:'node12', id:12})
        CREATE (rootA)-[:LINK]->(n1)-[:LINK]->(n2)-[:LINK]->(n3)-[:LINK]->(n4)
        CREATE                  (n1)-[:LINK]->(n5)-[:LINK]->(n6)<-[:LINK]-(n7)
        CREATE                                (n5)-[:LINK]->(n8)
        CREATE                                (n5)-[:LINK]->(n9)-[:DIFFERENT_LINK]->(n10)
        CREATE (rootB)-[:LINK]->(n11);
apoc.refactor.cloneSubgraph before
Figure 1. Graph before subgraph cloning

This procedure clones a subgraph defined by a list of paths. This is useful when you want to ensure the cloned subgraph isn’t connected to the original nodes, or to nodes outside the subgraph.

The following query clones a subtree starting from rootA consisting of outgoing :LINK relationships, and attaches that subgraph to rootB. rootB acts as a standin for rootA, which is not cloned:

MATCH  (rootA:Root{name:'A'}),
       (rootB:Root{name:'B'})
MATCH path = (rootA)-[:LINK*]->(node)
WITH rootA, rootB, collect(path) as paths
CALL apoc.refactor.cloneSubgraphFromPaths(paths, {
    standinNodes:[[rootA, rootB]]
})
YIELD input, output, error
RETURN input, output, error;
Results
input output error

31424

(:Node {name: "node3", id: 3})

NULL

31425

(:Node {name: "node4", id: 4})

NULL

31426

(:Node {name: "node5", id: 5})

NULL

31427

(:Node {name: "node6", id: 6})

NULL

31429

(:Node {name: "node8", id: 8})

NULL

31430

(:Node {name: "node9", id: 9})

NULL

31422

(:Node {name: "node1", id: 1})

NULL

31423

(:Node {name: "node2", id: 2})

NULL

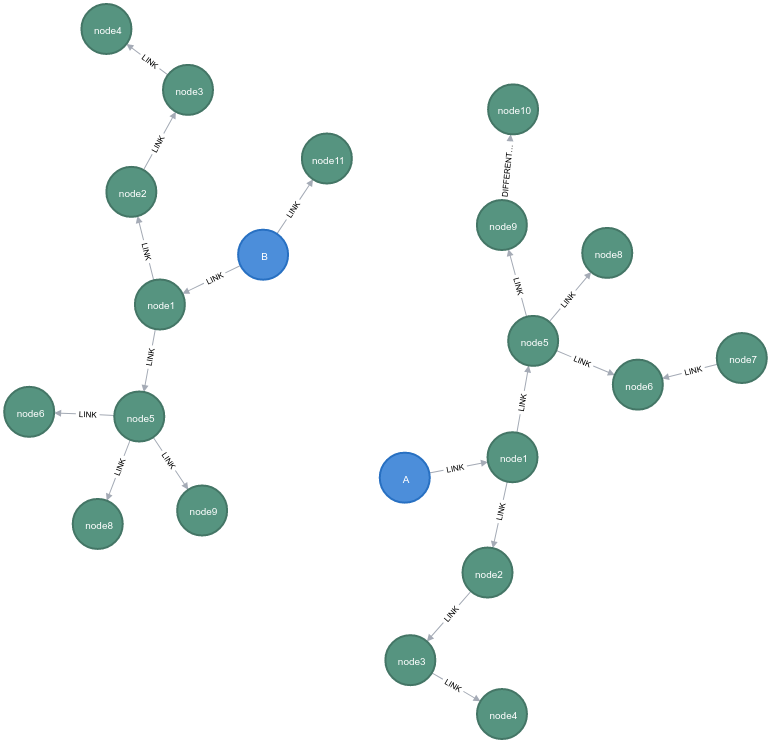

apoc.refactor.cloneSubgraphFromPaths after
Figure 2. Graph after subgraph cloning
