Scene interactions

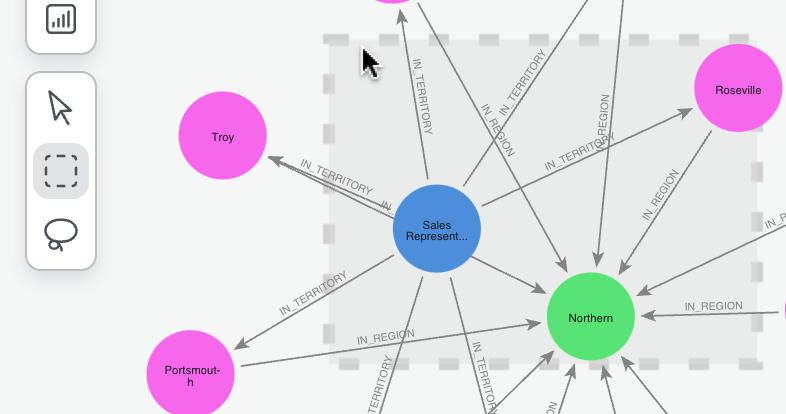

If you want to work with a node and its closest connected neighbors, you can select it and from the context menu Select related nodes. Once selected, you can then dismiss the other (unselected) nodes and only have your nodes of interest in the Scene. This action is also possible with multiple nodes selected.

As mentioned above, it is often convenient to display only connected nodes. Without selecting any nodes or relationships, the context menu lets you Dismiss single nodes to remove all nodes that are not related to any other visible nodes in the Scene.

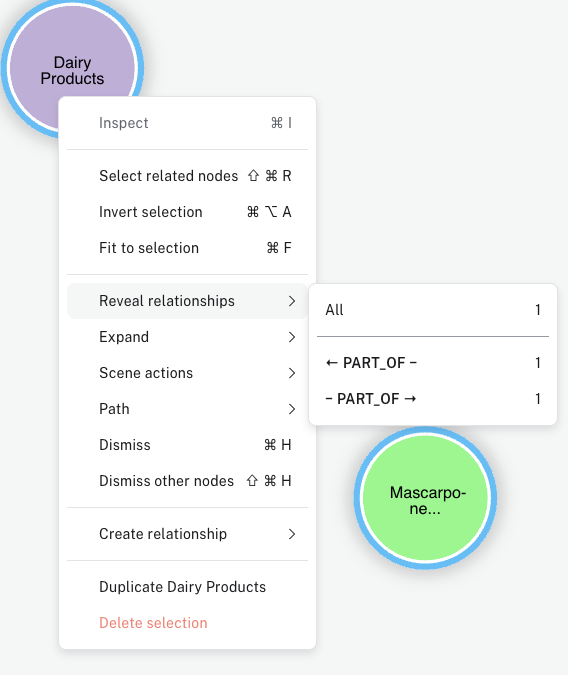

With a single or group of nodes selected, you can reveal direct relationships between them that are not already visible in your scene. This option is available if relationships exist between selected nodes, provided that they are not already displayed. Accordingly, if only one node is selected, the Reveal relationships is available only if the node in question has a relationship to itself.

With a single or group of nodes selected for context, you can expand the nodes to visualize their immediate neighbors. Then, select from the result and expand further to navigate local areas of the graph. Expansion can be done from the right-click context menu of a node or from the Inspector when viewing a node’s relationships or neighbors. When expanding neighbors of a node, the number of nodes returned is limited to the number specified in the Node query limit in the Settings drawer.

The right-click context menu provides additional options to expand selectively along a specific relationship type and direction, or to open the Advanced Expansion dialog and choose to expand along several specific paths, or to specific neighboring node types, or a combination. You can also choose to limit the number of nodes that should be returned in the result. If you set a limit in the context menu, this overrides any Node query limit set in the Settings drawer.

A powerful feature of Neo4j graphs is to see how two entities may be connected without knowing the exact path of relationships between them. To do so in Bloom, you can run a shortest path command between two nodes. Select the two nodes of interest, right-click on one of the nodes to bring up the context menu and select the Shortest Path option.

In instances where you are interested in knowing more about how various nodes are related in comparison to each other, Bloom allows you to change the layout of your scene. By default, the nodes and relationships in a Scene are presented in a force-based layout.

The hierarchical-layout option from the layout menu located at the bottom right-hand corner of the canvas, presents the nodes in the Scene in an hierarchical order instead. The nodes are then arranged by the directionality of their relationships, determined by the way relationship directions are set up in the database. When the hierarchical layout is activated, you can change the orientation with the edit-button directly to the right of the layout menu.

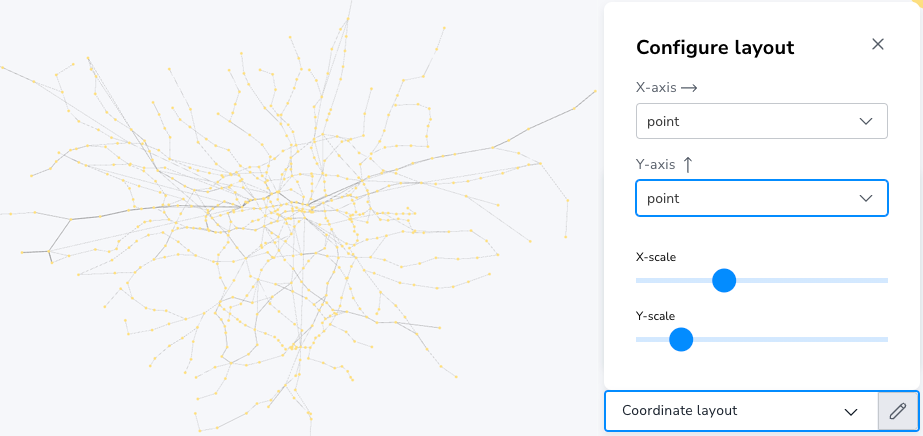

The third option is the coordinate layout and it arranges, and fixes, the nodes on the canvas by their integer, float, or point type properties (provided that the nodes have them) and is used for geographical entities for example. You can select which node property to use from the dropdown menu.

If no property is selected for the x-axis, Bloom automatically looks for any point property and if no such property exists, it looks for any property named latitude, then lat, and then x. For the y-axis, the order is: point, any property named longitude, long, and lastly y.

If some nodes already in the Scene do not have applicable properties when switching to the coordinate layout, they are placed on one side.

Only properties with numerical values are available, i.e. not string properties. For point properties, both two-dimension Cartesian and geographic (longitude and latitude) points are supported. When geographic points are used, Mercator Projection is used as the map projection.

You can scale both axes to find the right level of granularity for your dataset.

If you want to go back to the force-directed layout, just select the force-based layout from the layout menu.

When using the force-based layout, Cytoscape is enabled by default. This means that smaller graphs are laid out using a Cytoscape layout which is faster and makes the elements in the scene more readable, and it applies to graphs of <100 nodes and <300 relationships. It can be disabled via the edit-button.

The map is located in the bottom right corner of the canvas and gives you an overview of the entire scene. It helps you navigate, especially when your graph is large and/or when your nodes contain a lot of information and you often need to zoom in and out to view.

The map shows all the nodes present in the scene, as well as the currently visible selection and where this selection is located in relation to the whole scene. It allows you to pan the Scene by dragging the box that contains the current selection, you can zoom in and out using the + and -.

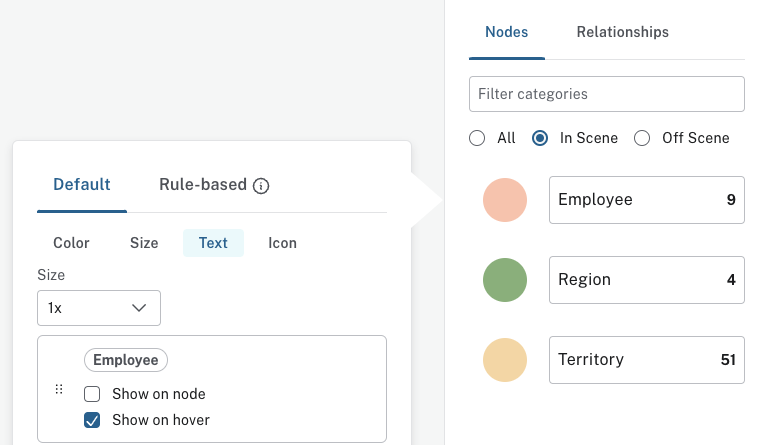

Presentation mode hides the search bar, legend panel and other elements to take the current Scene into full screen. If you need the legend panel while in presentation mode, use the arrow-button to expand.

Your current zoom-percentage is shown and by clicking that number, you reset the zoom to 100%. In addition, you can select to fit the entire graph to the screen or hide the map.

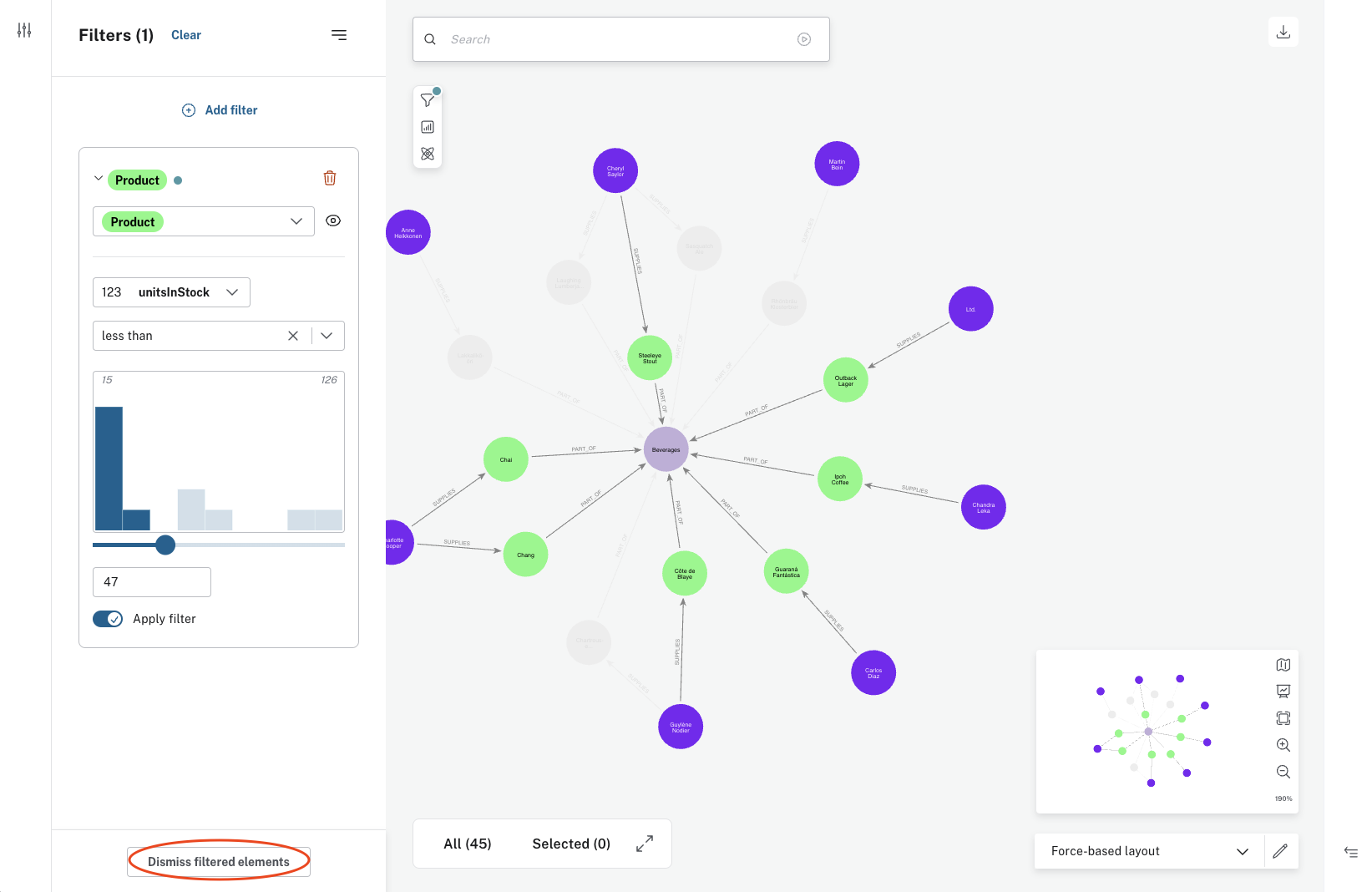

When you have a Scene full of nodes and relationships, it can be difficult to identify exactly the sub-graph you need. Applying a filter can help you fine-tune the results from your Search phrase and help you find what you are looking for in your data. When a filter is applied, all filtered elements are greyed out in the Scene, they are still visible but you cannot interact with them. You can also completely remove the filtered elements from the Scene, by using the Dismiss Filtered elements.

Filters can be accessed from the Filter drawer and are created based on the elements present in your scene, their categories, types, and properties. The filter can be as coarse or as fine as you like.

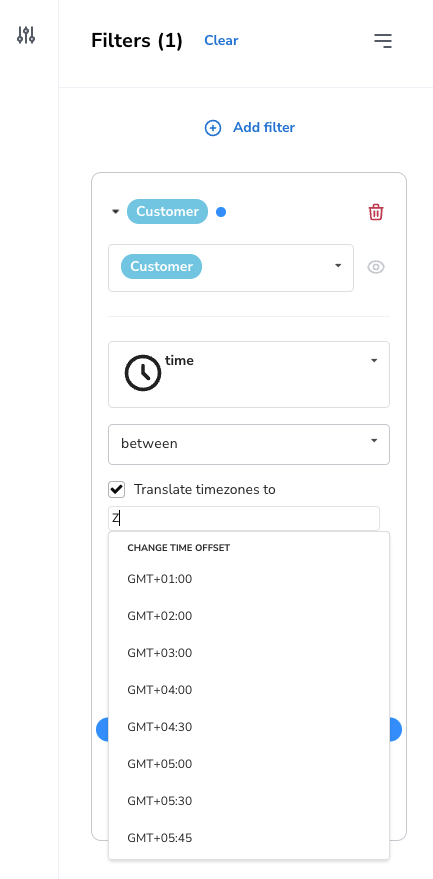

To start, you select the node category or relationship type to base the filter on. At that point, you have the option to filter out all other categories present in the Scene. For more fine-grained filtering, you can further specify properties to filter on. Filtering is supported for integer, float, boolean, string, Date, Time, LocalTime, DateTime, and LocalDateTime properties. If the chosen property is numeric, a histogram gives you an overview of the values present in the current Scene. The slider(s) allows you to set value(s) for your filter. When you are satisfied, you use the toggle to apply the filter.

You can create as many filters as you like, they remain in the Filter drawer until you delete them. When you have multiple filters, they are collapsed in the drawer and you click on them to expand them and see their details.

If you have the required write permissions to your graph database, you can edit your graph data in Bloom. You can edit labels and properties as well as create new nodes and relationships directly from your scene. For more information, see Edit graph data.
