User Guide: Knowledge Graph Builder¶
This page provides information about how to create a Knowledge Graph from unstructured data.
Warning
This feature is still experimental. API changes and bug fixes are expected.
Pipeline Structure¶

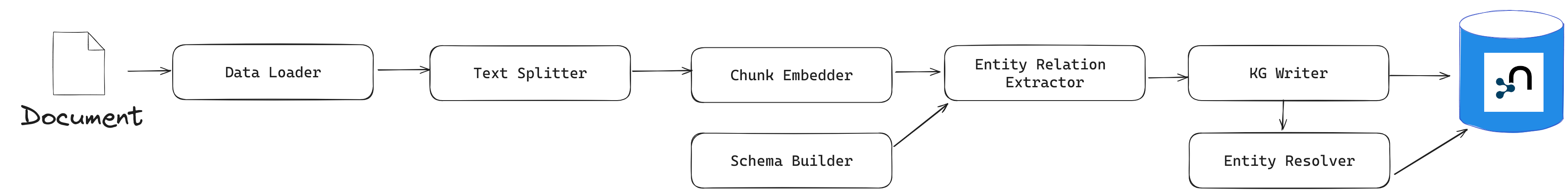

A Knowledge Graph (KG) construction pipeline requires a few components (some of the below components are optional):
Document parser: extract text from files (PDFs, …).
Document chunker: split the text into smaller pieces of text, manageable by the LLM context window (token limit).
Chunk embedder (optional): compute the chunk embeddings.
Schema builder: provide a schema to ground the LLM extracted entities and relations and obtain an easily navigable KG.
LexicalGraphBuilder: build the lexical graph (Document, Chunk and their relationships) (optional).
Entity and relation extractor: extract relevant entities and relations from the text.
Knowledge Graph writer: save the identified entities and relations.
Entity resolver: merge similar entities into a single node.
This package contains the interface and implementations for each of these components, which are detailed in the following sections.
To see an end-to-end example of a Knowledge Graph construction pipeline, refer to the example folder in the project GitHub repository.
Knowledge Graph Builder Components¶
Below is a list of the different components available in this package and how to use them.
Each of these components can be run individually:
import asyncio
from neo4j_graphrag.experimental.components.pdf_loader import PdfLoader
my_component = PdfLoader()
asyncio.run(my_component.run("my_file.pdf"))
They can also be used within a pipeline:
from neo4j_graphrag.experimental.pipeline import Pipeline
from neo4j_graphrag.experimental.components.pdf_loader import PdfLoader
pipeline = Pipeline()
my_component = PdfLoader()
pipeline.add_component(my_component, "component_name")
Document Parser¶
Document parsers start from a file path and return the text extracted from this file.
This package currently supports text extraction from PDFs:
from pathlib import Path
from neo4j_graphrag.experimental.components.pdf_loader import PdfLoader
loader = PdfLoader()
await loader.run(path=Path("my_file.pdf"))
To implement your own loader, use the DataLoader interface:
from pathlib import Path
from neo4j_graphrag.experimental.components.pdf_loader import DataLoader, PdfDocument
class MyDataLoader(DataLoader):
async def run(self, path: Path) -> PdfDocument:
# process file in `path`
return PdfDocument(text="text")
Document Splitter¶
Document splitters, as the name indicate, split documents into smaller chunks that can be processed within the LLM token limits:
from neo4j_graphrag.experimental.components.text_splitters.fixed_size_splitter import FixedSizeSplitter
splitter = FixedSizeSplitter(chunk_size=4000, chunk_overlap=200)
splitter.run(text="Hello World. Life is beautiful.")
Wrappers for LangChain and LlamaIndex text splitters are included in this package:
from langchain_text_splitters import CharacterTextSplitter
from neo4j_graphrag.experimental.components.text_splitters.langchain import LangChainTextSplitterAdapter
splitter = LangChainTextSplitterAdapter(
CharacterTextSplitter(chunk_size=4000, chunk_overlap=200, separator=".")
)
await splitter.run(text="Hello World. Life is beautiful.")
Also see LangChainTextSplitterAdapter and LlamaIndexTextSplitterAdapter.
To implement a custom text splitter, the TextSplitter interface can be used:
from neo4j_graphrag.experimental.components.text_splitters.base import TextSplitter
from neo4j_graphrag.experimental.components.types import TextChunks, TextChunk
class MyTextSplitter(TextSplitter):
def __init__(self, separator: str = ".") -> None:
self.separator = separator
async def run(self, text: str) -> TextChunks:
return TextChunks(
chunks=[
TextChunk(text=text_chunk)
for text_chunk in text.split(self.separator)
]
)
Chunk Embedder¶
In order to embed the chunks’ texts (to be used in vector search RAG), one can use the TextChunkEmbedder component, which rely on the Embedder interface.
Example usage:
from neo4j_graphrag.experimental.components.embedder import TextChunkEmbedder
from neo4j_graphrag.embeddings.openai import OpenAIEmbeddings
text_chunk_embedder = TextChunkEmbedder(embedder=OpenAIEmbeddings())
await text_chunk_embedder.run(text_chunks=TextChunks(chunks=[TextChunk(text="my_text")]))
Note
To use OpenAI (embedding or LLM), the OPENAI_API_KEY must be in the env vars, for instance using:
import os
os.environ["OPENAI_API_KEY"] = "sk-..."
If OpenAI is not an option, see Embedders to learn how to use other supported embedders.
The embeddings are added to each chunk metadata, and will be saved as a Chunk node property in the graph if create_lexical_graph is enabled in the EntityRelationExtractor (keep reading).
Lexical Graph Builder¶
Once the chunks are extracted and embedded (if required), a graph can be created.
The lexical graph contains:
Document node: represent the processed document and have a path property.
Chunk nodes: represent the text chunks. They have a text property and, if computed, an embedding property.
NEXT_CHUNK relationships between one chunk node and the next one in the document. It can be used to enhance the context in a RAG application.
FROM_DOCUMENT relationship between each chunk and the document it was built from.
Example usage:
from neo4j_graphrag.experimental.pipeline.components.lexical_graph_builder import LexicalGraphBuilder
from neo4j_graphrag.experimental.pipeline.components.types import LexicalGraphConfig
lexical_graph_builder = LexicalGraphBuilder(config=LexicalGraphConfig(id_prefix="example"))
graph = await lexical_graph_builder.run(
text_chunks=TextChunks(chunks=[
TextChunk(text="some text", index=0),
TextChunk(text="some text", index=1),
]),
document_info=DocumentInfo(path="my_document.pdf"),
)
See Knowledge Graph Writer to learn how to write the resulting nodes and relationships to Neo4j.
Neo4j Chunk Reader¶
The Neo4j chunk reader component is used to read text chunks from Neo4j. Text chunks can be created by the lexical graph builder or another process.
import neo4j
from neo4j_graphrag.experimental.components.neo4j_reader import Neo4jChunkReader
from neo4j_graphrag.experimental.components.types import LexicalGraphConfig
reader = Neo4jChunkReader(driver)
result = await reader.run()
Configure node labels and relationship types¶
Optionally, the document and chunk node labels can be configured using a LexicalGraphConfig object:
from neo4j_graphrag.experimental.components.neo4j_reader import Neo4jChunkReader
from neo4j_graphrag.experimental.components.types import LexicalGraphConfig, TextChunks
# optionally, define a LexicalGraphConfig object
# shown below with the default values
config = LexicalGraphConfig(
id_prefix="", # used to prefix the chunk and document IDs
chunk_node_label="Chunk",
document_node_label="Document",
chunk_to_document_relationship_type="PART_OF_DOCUMENT",
next_chunk_relationship_type="NEXT_CHUNK",
node_to_chunk_relationship_type="PART_OF_CHUNK",
chunk_embedding_property="embeddings",
)
reader = Neo4jChunkReader(driver)
result = await reader.run(lexical_graph_config=config)
Schema Builder¶
The schema is used to try and ground the LLM to a list of possible entities and relations of interest. So far, schema must be manually created by specifying:
Entities the LLM should look for in the text, including their properties (name and type).
Relations of interest between these entities, including the relation properties (name and type).
Triplets to define the start (source) and end (target) entity types for each relation.
Here is a code block illustrating these concepts:
from neo4j_graphrag.experimental.components.schema import (
SchemaBuilder,
SchemaEntity,
SchemaProperty,
SchemaRelation,
)
schema_builder = SchemaBuilder()
await schema_builder.run(
entities=[
SchemaEntity(
label="Person",
properties=[
SchemaProperty(name="name", type="STRING"),
SchemaProperty(name="place_of_birth", type="STRING"),
SchemaProperty(name="date_of_birth", type="DATE"),
],
),
SchemaEntity(
label="Organization",
properties=[
SchemaProperty(name="name", type="STRING"),
SchemaProperty(name="country", type="STRING"),
],
),
],
relations=[
SchemaRelation(
label="WORKED_ON",
),
SchemaRelation(
label="WORKED_FOR",
),
],
possible_schema=[
("Person", "WORKED_ON", "Field"),
("Person", "WORKED_FOR", "Organization"),
],
)
After validation, this schema is saved in a SchemaConfig object, whose dict representation is passed to the LLM.
Entity and Relation Extractor¶
This component is responsible for extracting the relevant entities and relationships from each text chunk, using the schema as guideline.
This package contains an LLM-based entity and relationships extractor: LLMEntityRelationExtractor. It can be used in this way:
from neo4j_graphrag.experimental.components.entity_relation_extractor import (
LLMEntityRelationExtractor,
)
from neo4j_graphrag.llm.openai import OpenAILLM
extractor = LLMEntityRelationExtractor(
llm=OpenAILLM(
model_name="gpt-4o",
model_params={
"max_tokens": 1000,
"response_format": {"type": "json_object"},
},
)
)
await extractor.run(chunks=TextChunks(chunks=[TextChunk(text="some text")]))
Warning
The LLMEntityRelationExtractor works better if “response_format”: {“type”: “json_object”} is in the model parameters.
The LLM to use can be customized, the only constraint is that it obeys the LLMInterface.
Error Behaviour¶
By default, if the extraction fails for one chunk, it will be ignored and the non-failing chunks will be saved. This behaviour can be changed by using the on_error flag in the LLMEntityRelationExtractor constructor:
from neo4j_graphrag.experimental.components.entity_relation_extractor import (
LLMEntityRelationExtractor,
OnError,
)
extractor = LLMEntityRelationExtractor(
llm=OpenAILLM(
model_name="gpt-4o",
model_params={
"max_tokens": 1000,
"response_format": {"type": "json_object"},
},
),
on_error=OnError.RAISE,
)
In this scenario, any failing chunk will make the whole pipeline fail (for all chunks), and no data will be saved to Neo4j.
Lexical Graph¶
By default, the LLMEntityRelationExtractor also creates the lexical graph.
If this ‘lexical graph’ is not desired, set the created_lexical_graph to False in the extractor constructor:
extractor = LLMEntityRelationExtractor(
llm=....,
create_lexical_graph=False,
)
Note
If self.create_lexical_graph is set to True, the complete lexical graph will be created, including the document and chunk nodes, along with the relationships between entities and the chunk they were extracted from.
If self.create_lexical_graph is set to False but lexical_graph_config is provided, the document and chunk nodes won’t be created. However, relationships between chunks and the entities extracted from them will still be added to the graph.
Warning
If omitting self.create_lexical_graph and the chunk does not exist, this will result in no relationship being created in the database by the writer.
Customizing the Prompt¶
The default prompt uses the ERExtractionTemplate. It is possible to provide a custom prompt as string:
extractor = LLMEntityRelationExtractor(
llm=....,
prompt="Extract entities from {text}",
)
The following variables can be used in the prompt:
text (str): the text to be analyzed (mandatory).
schema (str): the graph schema to be used.
examples (str): examples for few-shot learning.
Subclassing the EntityRelationExtractor¶
If more customization is needed, it is possible to subclass the EntityRelationExtractor interface:
from pydantic import validate_call
from neo4j_graphrag.experimental.components.entity_relation_extractor import EntityRelationExtractor
from neo4j_graphrag.experimental.components.schema import SchemaConfig
from neo4j_graphrag.experimental.components.types import (
Neo4jGraph,
Neo4jNode,
Neo4jRelationship,
TextChunks,
)
class MyExtractor(EntityRelationExtractor):
@validate_call
async def run(self, chunks: TextChunks, **kwargs: Any) -> Neo4jGraph:
return Neo4jGraph(
nodes=[
Neo4jNode(id="0", label="Person", properties={"name": "A. Einstein"}),
Neo4jNode(id="1", label="Concept", properties={"name": "Theory of relativity"}),
],
relationships=[
Neo4jRelationship(type="PROPOSED_BY", start_node_id="1", end_node_id="0", properties={"year": 1915})
],
)
Knowledge Graph Writer¶
KG writer are used to save the results of the EntityRelationExtractor. The main implementation is the Neo4jWriter that will write nodes and relationships to a Neo4j database:
import neo4j
from neo4j_graphrag.experimental.components.kg_writer import Neo4jWriter
from neo4j_graphrag.experimental.components.types import Neo4jGraph
with neo4j.GraphDatabase.driver(
"bolt://localhost:7687", auth=("neo4j", "password")
) as driver:
writer = Neo4jWriter(driver)
graph = Neo4jGraph(nodes=[], relationships=[])
await writer.run(graph)
Adjust the batch_size parameter of Neo4jWriter to optimize insert performance. This parameter controls the number of nodes or relationships inserted per batch, with a default value of 1000.
See Neo4jGraph.
It is possible to create a custom writer using the KGWriter interface:
import json
from pydantic import validate_call
from neo4j_graphrag.experimental.components.kg_writer import KGWriter
class JsonWriter(KGWriter):
def __init__(self, file_name: str) -> None:
self.file_name = file_name
@validate_call
async def run(self, graph: Neo4jGraph) -> KGWriterModel:
try:
with open(self.file_name, "w") as f:
json.dump(graph.model_dump(), f, indent=2)
return KGWriterModel(status="SUCCESS")
except Exception:
return KGWriterModel(status="FAILURE")
Note
The validate_call decorator is required when the input parameter contain a Pydantic model.
See KGWriterModel and KGWriter in API reference.
Entity Resolver¶
The KG Writer component creates new nodes for each identified entity without making assumptions about entity similarity. The Entity Resolver is responsible for refining the created knowledge graph by merging entity nodes that represent the same real-world object.
In practice, this package implements a single resolver that merges nodes with the same label and identical “name” property.
Warning
The SinglePropertyExactMatchResolver replaces the nodes created by the KG writer.
It can be used like this:
from neo4j_graphrag.experimental.components.resolver import (
SinglePropertyExactMatchResolver,
)
resolver = SinglePropertyExactMatchResolver(driver)
res = await resolver.run()
Warning
By default, all nodes with the __Entity__ label will be resolved. To exclude specific nodes, a filter_query can be added to the query. For example, if a :Resolved label has been applied to already resolved entities in the graph, these entities can be excluded with the following approach:
from neo4j_graphrag.experimental.components.resolver import (
SinglePropertyExactMatchResolver,
)
resolver = SinglePropertyExactMatchResolver(driver, filter_query="WHERE not entity:Resolved")
res = await resolver.run()
