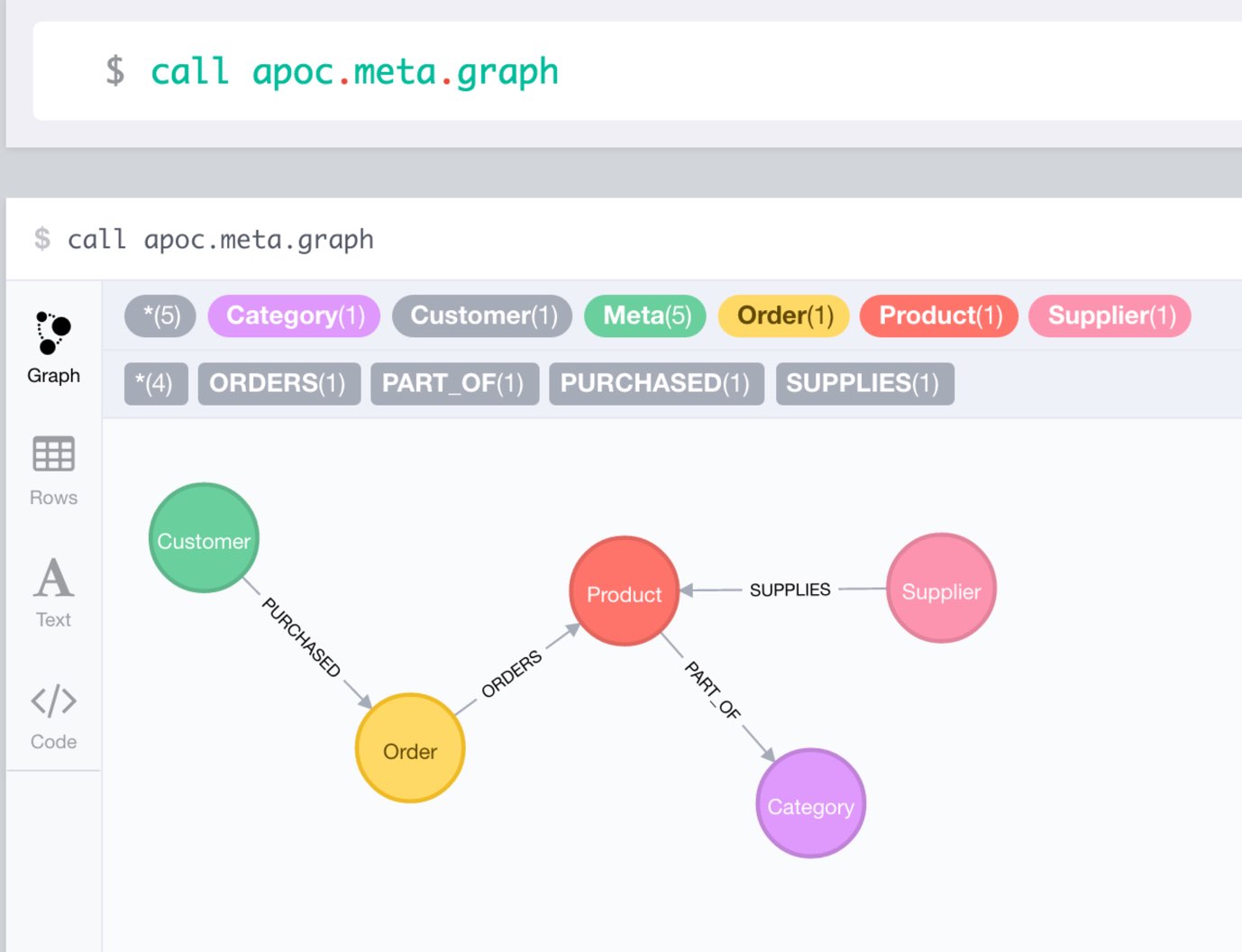

Meta Graph

Returns a virtual graph that represents the labels and relationship-types available in your database and how they are connected.

apoc.meta.graph
Table 1. Procedures

CALL apoc.meta.graphSample()

examines the database statistics to build the meta graph, very fast, might report extra relationships

CALL apoc.meta.graph.of

examines a subset of the graph to provide a graph meta information

CALL apoc.meta.graph

examines the database statistics to create the meta-graph, post filters extra relationships by sampling

CALL apoc.meta.subGraph({labels:[labels],rels:[rel-types],excludes:[label,rel-type,...]})

examines a sample sub graph to create the meta-graph

CALL apoc.meta.data

examines a subset of the graph to provide a tabular meta information

CALL apoc.meta.schema

examines a subset of the graph to provide a map-like meta information

CALL apoc.meta.stats yield labelCount, relTypeCount, propertyKeyCount, nodeCount, relCount, labels, relTypes, stats

returns the information stored in the transactional database statistics

CALL apoc.meta.nodeTypeProperties({includeLabels:[label,...],includeRels:[rel-type,...],excludeLabels:[label,,...],excludeRels:[rel-type,...]})

replaces built-in function for node property schema to provide a sample-based result for high performance - used by the Neo4J BI Connector

CALL apoc.meta.relTypeProperties({includeLabels:[label,...],includeRels:[rel-type,...],excludeLabels:[label,...],excludeRels:[rel-type,...]})

replaces built-in function for relationship property schema to provide a sample-based result for high performance - used by the Neo4J BI Connector

Table 2. Functions

apoc.meta.cypher.type(value)

type name of a value (INTEGER,FLOAT,STRING,BOOLEAN,RELATIONSHIP,NODE,PATH,NULL,MAP,LIST OF <TYPE>,POINT,DATE,DATE_TIME,LOCAL_TIME,LOCAL_DATE_TIME,TIME,DURATION)

apoc.meta.cypher.isType(value,type)

returns a row if type name matches none if not

apoc.meta.cypher.types(node or relationship or map)

returns a a map of property-keys to their names

In the case of LIST you may have many results, depending on the content. In the event that all contents are of the same type, will you have the LIST OF <TYPE>, otherwise if the type is different, will you get LIST OF ANY

If no type was found, the function return name of the class.

Table 3. Functions Deprecated

apoc.meta.type(value)

type name of a value (INTEGER,FLOAT,STRING,BOOLEAN,RELATIONSHIP,NODE,PATH,NULL,MAP,LIST)

apoc.meta.isType(value,type)

returns a row if type name matches none if not

apoc.meta.types(node or relationship or map)

returns a a map of property-keys to their names

If no type was found, the function return name of the class.

isType example
MATCH (n:Person)
RETURN apoc.meta.isType(n.age,"INTEGER") as ageType
